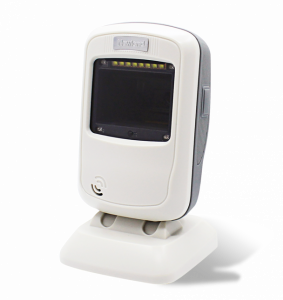

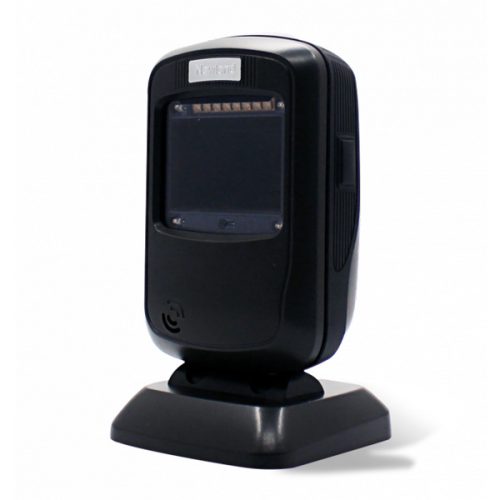

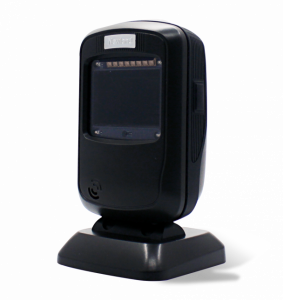

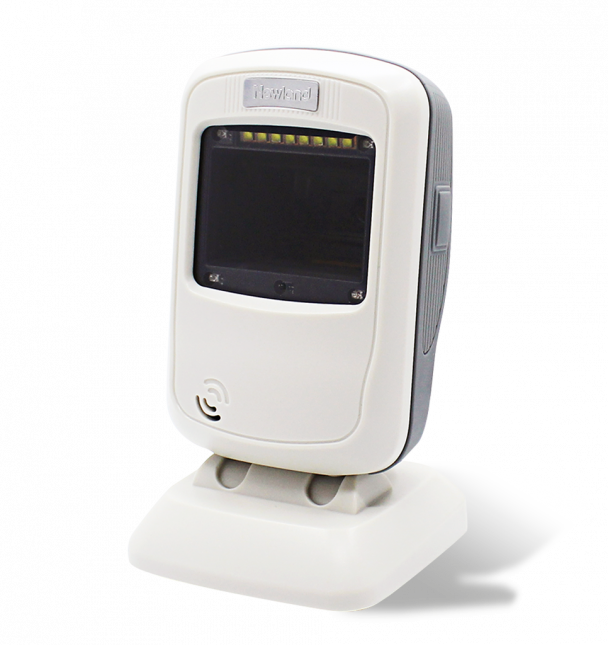

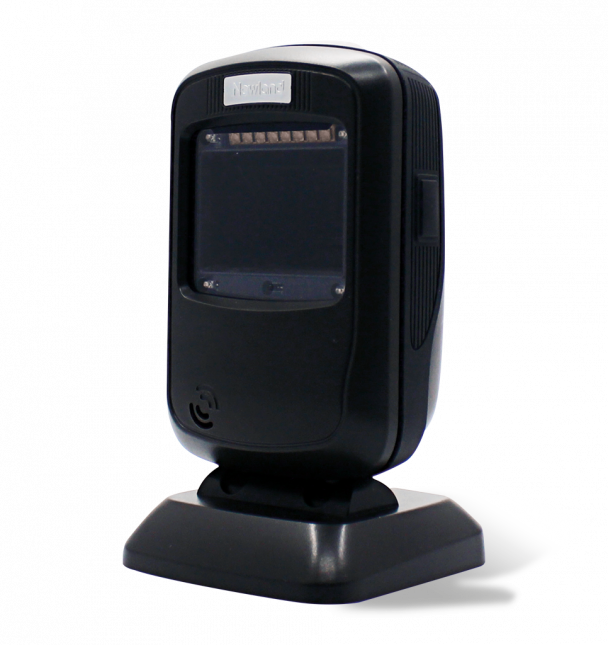

FR40 Koi
First megapixel presentation scanner.
At the top of the line, the FR40 Koi reads 1D and 2D barcodes, including Aztec, with speed and accuracy. It is the first presentation scanner on the market that includes a megapixel camera and is capable of reading even the most complex codes. This makes it the perfect solution for applications like POS systems in retail and pharmacy, ticket verification and more.
Unmatched flexibility.
With a switch to toggle between paper and screen mode, the FR40 Koi is ready for any barcode that it is presented with. This added flexibility, leaves this hardware unaffected.
Comfortable Illumination.
With a 10° angle and soft illumination, the FR40 Koi guarantees comfort to both customers and employees. When facing outwards, the illumination will not draw unnecessary attention.
IP52 rated sealing.
With an IP52 rated seal, the FR40 Koi is protected against dust, water and other contaminants.
1.2 drop resistance.
The FR40 Koi withstands multiple 1.2m drops to concrete (six sides, one drop per side).
IR trigger.
The IR sensor in the FR40 Koi enables the speedy capture of any barcode presented to it, markedly increasing output and productivity.
Performans | |
Görüntü Sensörü | 1280×800 CMOS |
Aydınlatma | Beyaz LED |
Okuma Derinliği EAN13 (13mil) | 5-195mm |
Alan Derinliği QR (15mil) | 5-165mm |
Minimum Baskı Kontrastı | %25 |
Tarama Yatış Açısı | 360° |
Tarama Açısı Aralığı | ±50° |
Verev Tarama Açısı | ±45° |
Yatay Görüş Alanı | 51° |
Dikey Görüş Alanı | 32° |
Hareket Toleransı | 2,5m/s |
Veri Yakalama | |
1D | EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey dahil olmak üzere belli başlı tüm 1D sembolojiler. |
2D | PDF417, Data Matrix, QR Code, Micro QR Code, Aztec dahil olmak üzere belli başlı tüm 2D sembolojileri. |
Fiziksel | |
Boyutlar (mm) | 83(G)x81(D)x148(Y)mm |
Ağırlık | 293g |
Arayüzler | RS-232, USB |
Bildirimler | Bip, LED göstergesi |
Giriş Gerilimi | 5VDC±%5 |
5VDC Çalışma akımı | 219mA (tipik) |
Güç Tüketimi | 1041mW (tipik) |
Çevresel | |
Çalışma Sıcaklığı | -20°C ila 60°C |
Depolama Sıcaklığı | -40°C ila 70°C |
Nem | %5 ila %95 (yoğuşmasız) |
Elektrostatik Deşarj (ESD) | ± 14 kV (havadan deşarj), ± 8 kV (doğrudan deşarj) |
Düşme | 1,2m |
IP Sınıfı | IP52 |
Yazılım | |
Yapılandırma Araçları | EasySet (Kolay kurulum) |
Sertifikalar | |
Donanım | FCC Part15 Sınıf B, CE EMC Sınıf B |
Garanti | |
Standart | 5 yıl |
